Die Cast Aluminium Housing Outdoor LED Street Lights 60w 80w 100w Road Lighting

Name: Die Cast Aluminium Housing Outdoor LED Street Lights 60w 80w 100w Road Lighting
Brand: Die casting man
Price: 1 USD

Quality Die Cast Aluminium Housing Outdoor LED Street Lights 60w 80w 100w Road Lighting for sale

Brand Name : Die casting man

Model Number : YASL-21-80

Certification : CE, RoHs, ENEC, CB

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1000PCS/Month.

Delivery Time : 35days after deposit

Packaging Details : foam filing/pc

Input wattage : 60w 80w 100w

Efficiency : 130lm/w 140lm/w 150lm/w 160lm/w

Voltage : AC90-305V

housing color : black grey silver

warranty : 5 years

light source : LED

Contact Now

Die Cast Aluminium Housing Outdoor LED Street Lights 60w 80w 100w Road Lighting

Product Description

This Series is a high-performance street lighting available in three size

The luminaire is manufactured from high pressure die-casting aluminum

It shall have a led efficiency up to 150lm/w

The housing color can be optional.black.grey and silver as our standard.

Products Specification

Product Datasheet
Item No.	YASL-21-40	YASL-21-80	YASL-19-150
Power	30W 40W 50W	60W 80W 100W	120W 150W 180W
Lumen Efficiency	140lm/w	140lm/w	140lm/w
Lumen	6500-7200lm	13000-14500lm	19500-21500lm
Electrical Data
Working Voltage	AC100-265V 丨 50/60Hz
LED:	Lumileds / Epistar / SANAN
CCT	3000K, 4000K, 5000K ,6000K
CRI	Ra>70 (standard)/ Ra>80
Driver	Inventronics/ Meanwell/ Sosen
THD	<15%
Power Factor(PF)	PF>0.95
IP Rating	IP66
IK Rating	1K09
Holder	50mm/B60mm (standard)
Body Material	Hign pressure die-cast aluminum
Housing Calor	Dark Grey/Black/Light Grey (availabel on request)
Cover Material	UV-resistant Polycarbonate
Working Environment	-20℃ ~+50℃ , 10%~90%RH
Lifespan L70 at 25℃	> 50,000hrs
Mounting Type	Side entry or Vertical pole mounted ±15°
Dimmable	1-10V Dimming /Timer Dimming
Protecdion Class	Class I (standard) / Class Ⅱ
Standards	CE, RoHS, ENEC, CB, LM79. LM80, TM-21, IP66, IK09
Available on request	NEMA socket (3/5/7pins), ZHAGA socket. Short cap, Photocell., Motion sensor, NTC. OLC, DALI Dimming
Reasonable tolerance	Watt: ±10%,CCT:±500K, Lumen efficiency: ±5%

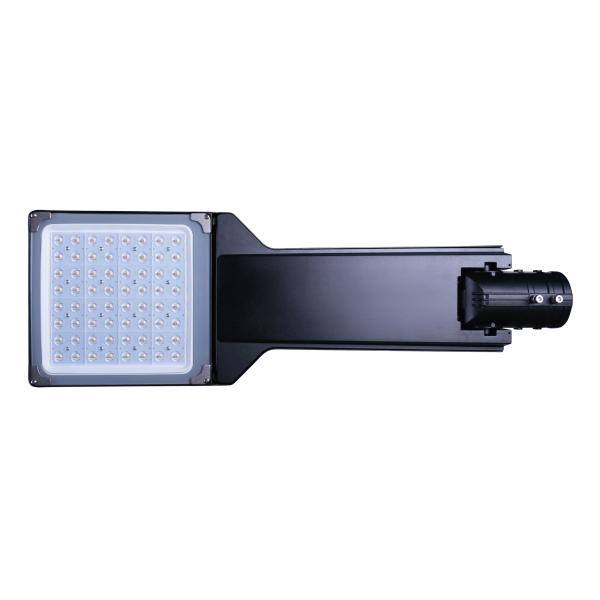

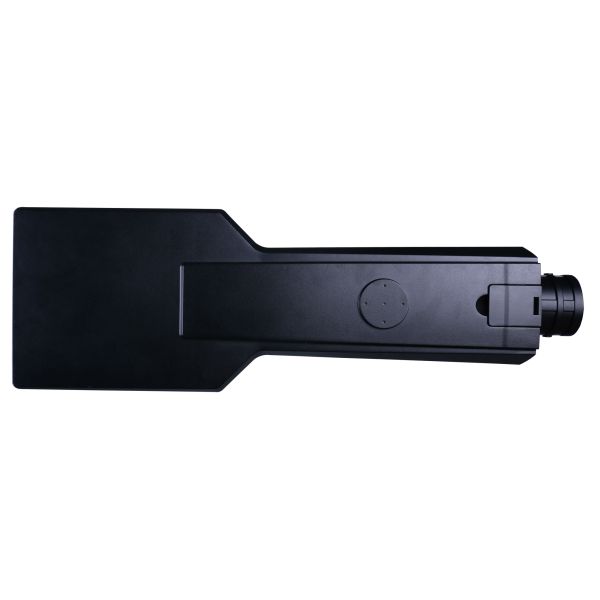

Detail Picture

Die Cast Aluminium Housing Outdoor LED Street Lights 60w 80w 100w Road Lighting

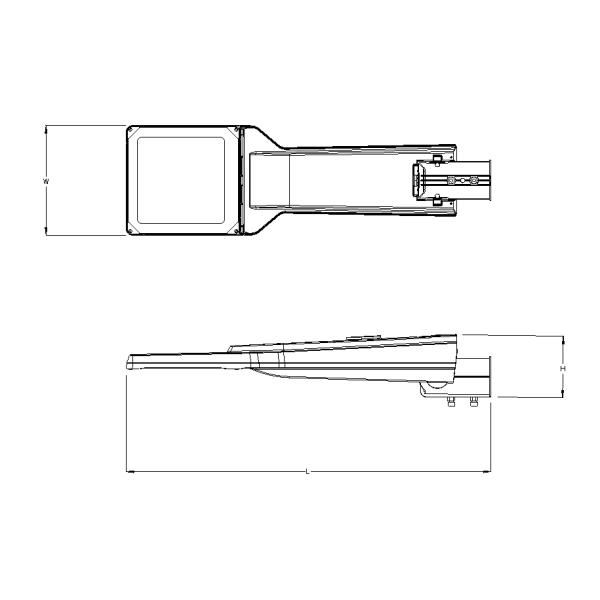

Product Size

 	 			Product code 			YASL-21-40 			YASL-21-80 			YASL-21-150
 			L(mm) 			564 			719 			836
 			W(mm) 			165 			216 			266
 			H(mm) 			125 			139 			155

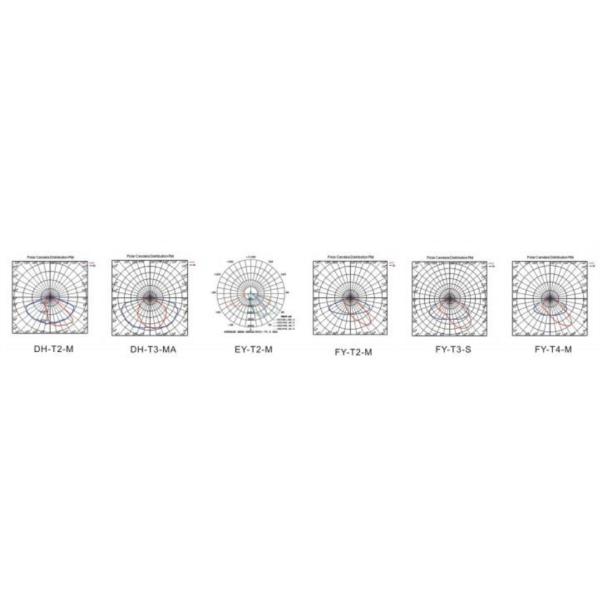

Photometric Data
